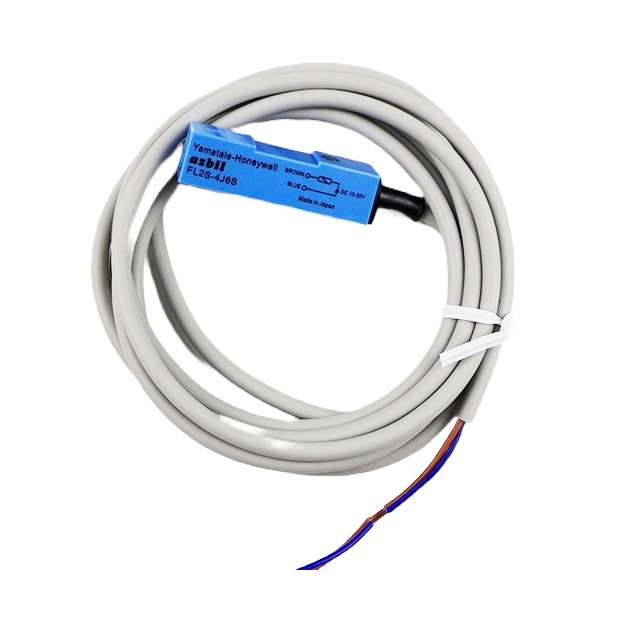

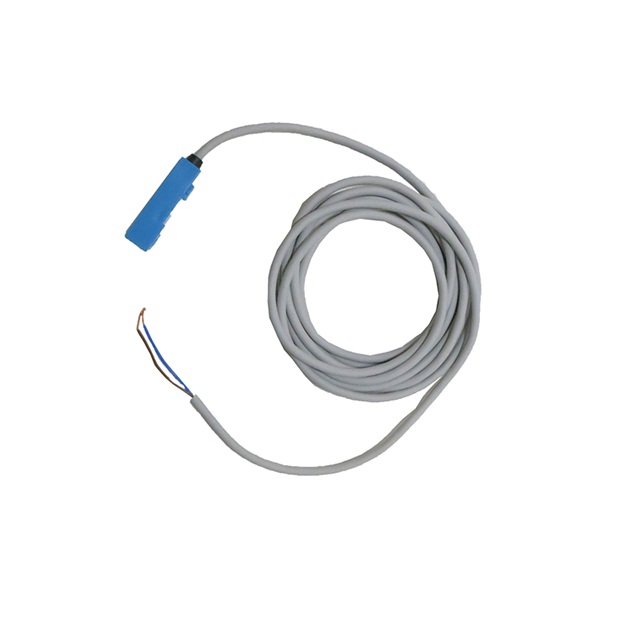

Azbil Yamatake FL2S-4J6SD

Product Name: FL2S-4J6SD

Proximity Sensor Square – DC 2 Wire, 12x12x45, Side sensor, NO, 4mm sensing range, 1 m cable, preleaded

Item Specifications

• Cable 1: Pre-leaded 1m
• Dimensions: 12mm x 12mm x 45mm
• Manufacturer: Azbil / Yamatake
• Operation Mode: NO
• Sensing Distance: 4mm
• Frequency Mode: Normal
• Setting Indication: Yes

Products Details:

Azbil FL2R/FL2S – DC 2-Wire Square Proximity Sensors can be directly connected to programmable controllers and NC units. A wide range of models are available (4, 7, 12, 20 mm, top/side, and NO/NC). They have a high-speed response time of 1.5 kHz at 4mm, 1 kHz at 7mm. Different-frequency types that are only slightly influenced by mutual interference available for all models. High seal capability (IP67). Enhanced circuit protection that include surge absorption, load short circuit and reverse connection countermeasures. Sensing distance 4mm to 20mm depending on the size and model. Standard (pre-loaded) model dimensions (mm) – Switch package style: 12 x 12 x 45, 15 x 15x 32, 20 x 20 x 38, 30 x 30 x 52.5, 40 x 40 x 53. Cord length 1 m. Preleaded 30 cm switch package style connector cables available for 12 x 12 x 45, 15 x 15x 32, 20 x 20 x 38, 30 x 30 x 52.5 and 40 x 40 x 53. CE-Marked.
